Programmable Water Proof Environmental Test Chambers With PLC Control system
1. Product introduction:
Water-resistance test chamber used to test anti-rain and water-proof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry etc.
2. Classify
1.Swing pipe specification: R800mm,R1000mm Total 2 roots(Can matching the R600mm,R1200mm,R1400mm,R1600mm swing pipe according the practical conditions)；
2.Swing pipe:stainless steel,Swing pipe inner diameter: Φ15mm；
3.Water orifice:￠0.4MM,Two hole spacing:50mm；
4.Stainless steel water orifice, for convenience detach replacement. Embedded set-piece, convenient adjustment water spray Angle；
5.Gush water mouth Angle:1200(IPX3),1800(IPX4)Use stainless steel article file manual adjustment；
6..Swing pipe angle:1200(IPX3),1800,Approximate 3600 manual adjustment
3. Applicable industries:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control
4. Standard configuration:
Specimen’s holder:φ600-800mm, height: 20cm(distance with bottom of chamber
Material: SUS#304stainless steel, swing pipe shelf is aluminium alloy sections. PLC(programmable logic controller) + touch screen, wing pip’s device
Electrical machine: “SANYO DENK”(Japan) servo motor, the angle of swing pipe is precision.
Turntable electrical machine: “SIG MA”(Taiwan) with high torque, low-noise& rotate speed stability
Control system: “MLTSUBLSHI” (Japan) PLC(programmable logic controller)
CONTROLLER: Mitsubishi(Japan) programmable controller
Screen: “WELNVLEW” (Taiwan) touch screen, provide the visual operation interface
Booster water pump: “CNP” booster pump
It has flow-meter, hydraulic gage, the precision is 0.2
5. Parameters:
| model | Rain sp HD-E712ray testers |
| Studio size | (D×W×H)80 ×130 ×100cm |
| Swing pipe diameter | 80cm |
| Testing temperature | Room temperature |
| Specimen rotative speed | 1-3r/min (Adjustable) |
| Power | 1 phase, 220V, 5KW |
| Weight | approx.350kg |
Product Tags:
|
|

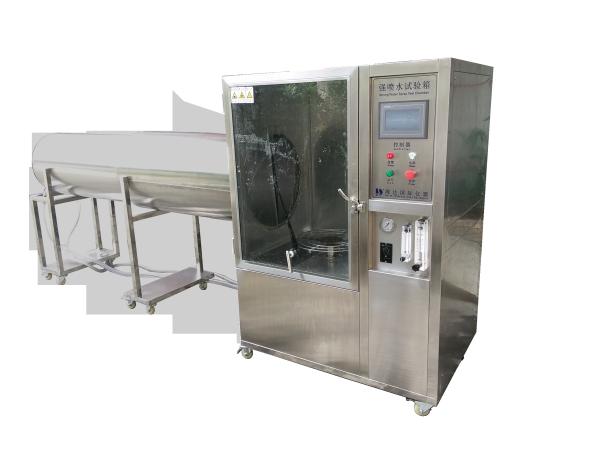

Programmable Water Proof Environmental Test Chambers With PLC Control system Images
|
